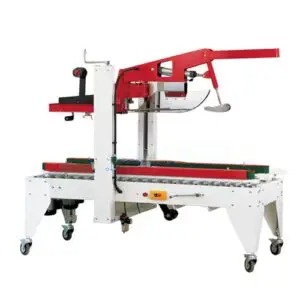

AUTO FOLD CARTON SEALER MACHINE —JY-5050Z/FXJ

Looking for Enquiry?

Ask for a quotation now and let us serve you!

DESCRIPTION:

This series is designed to seal carton by applying adhesive tape
Cost effective, High speed
Easy size changeovers
For integration into production line or as standalone machine
Conveyor belt tension and tape tension are adjustable to meet the needs of soft/hard cartons
The machine folds front/side/rear flaps at high speed
Two-side drive belts
Designed with upper & bottom tape heads or just upper tape head that are ideal for sealing uniform cartons continuously
easy loading and unloading due to the brackets installed on the two ends of the machine

TECHNICAL PARAMETER:

Model	JY-5050Z/FXJ
Voltage (V/Hz)	AC220/50
Power (W)	260
Gas Pressure (Mpa)	0.4~0.6
Speed	22m/min (25 cartons/min)
Maximum Carton Size (WxHxL)	600 x 500 x 500mm
Minimum Carton Size (WxHxL)	180 x 160 x 180mm
Adhesive Tape Material	BOPP, PVC adhesive tape, water-free adhesive tape
Height of Table	600-750mm
Width of Adhesive Tape	48, 60, 76mm (optional)
External Dimension (LxWxH)	1830 x 920 x (1450-1600)
Net Weight (kg)	250kg
Max Conveyor Load	30kg
